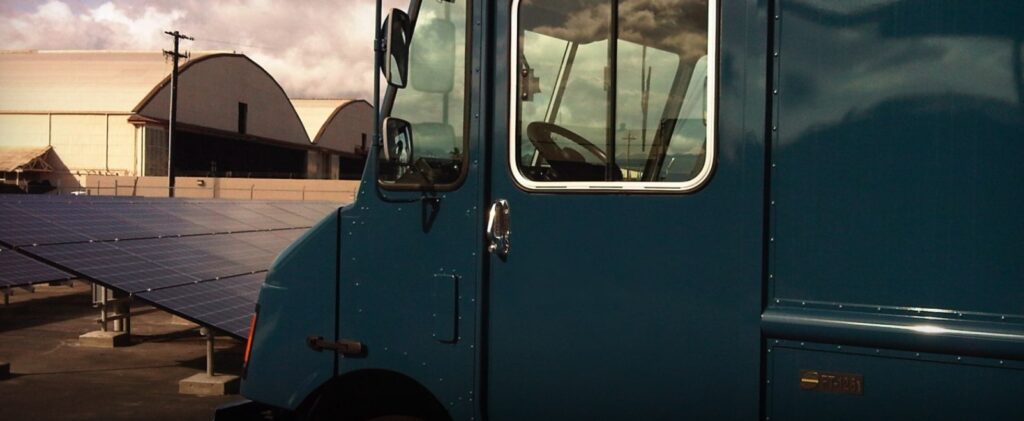

Fuel cell-powered step van

The Secure Power on Demand (SPOD) is a fuel cell powered step van with import and export power capabilities that can be used for emergency response or backup power, providing a mobile resource for resiliency to the US Air Force.

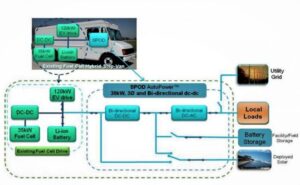

Technical Specs

Bi-Directional DC/AC

Type3 Phase AC Input/Output
DC Voltage350 – 420 VDC
AC Voltage200 – 240 VAC. 100 – 120 VAC
Maximum Power33 kW
Communication TypeCAN, RS232

Bi-Directional 4Q DC/DC

Operational Voltage Range60 – 420 VDC
Peak Current Handling300 ADC
Nominal Current150 ADC
Maximum Power60 kW
Communication TypeCAN, USB

External Battery Pack

Operational Voltage Range60 – 420 VDC
Communication TypeCAN

Solar Panel

Operational Voltage Range60 – 420 VDC

SPOD Controller

Communication TypeCAN
I/O12 VDC TTL or Equivalent
Type3 Phase, 1 Phase
Rated Voltage220 VAC Nominal
Rated Current60 AAC/Phase
Current ProtectionRelay Open when Exceeding Rated Current
Rated Voltage450 VDC
Rated Current>300 ADC
